Kabe original colour
Kabe Original Colour

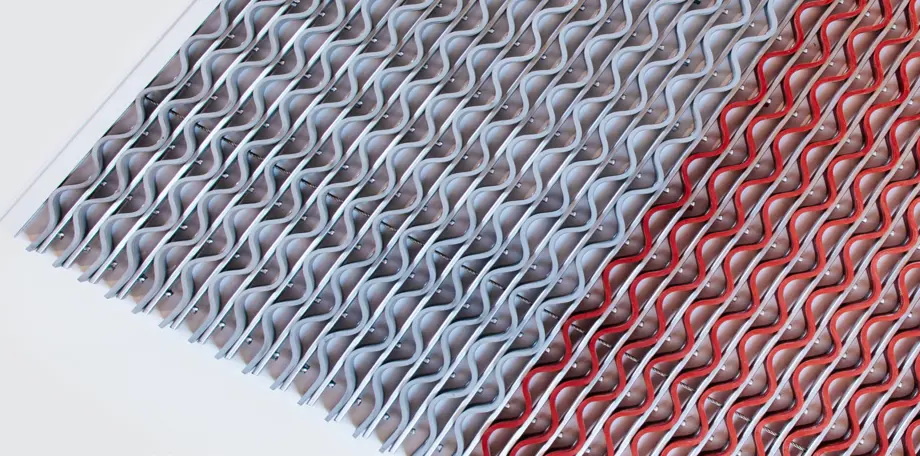

Create a colourful entrance solution with Kabe Original Colour! The mat has the same design as the Kabe Original, but is available with grey or red rubber alternatives combined with the Kabe Original entrance mat with black rubber. Kabe Original Colour can also be used for a simple pattern (depending on the size of the entrance). In addition, because the mat is the same on both sides, drainage and run-off are improved by the serrations on the reverse side. The colour mat can also be manufactured in other colours.
The entrance mat can be rolled up, handmade in Sweden for the last 75 years and has a 6-year guarantee. Moreover, the mat is 100% recyclable – our way of contributing to a more sustainable world. Kabe Original Colour can be laid outdoors or indoors and can be manufactured in rectangular, circular or irregular shapes. Contact us and we will help you!
TECHNICAL INFORMATION
WEIGHT
Approx. 12 kg/m².
MAT HEIGHT
Standard 22 mm.
MAT SIZE
Kabe Original Colour is manufactured made to measure. Max. size of a single piece 2000 x 5000 mm (A x B). To cover larger areas, the mat is divided into suitably sized sections. We can produce mats of almost any shape. Provide us with a drawing or template. Under 400 mm for A-dimension, there is an additional set-up cost.
FLAT BARS
Aluminium alloy, EN AW-6005-A-T6.
Dimensions: 12 x 4.5 mm.
RECYCLING
The mat is 100% recyclable.
EN 16005:2012
Complies with the requirements in EN 16005:2012.
BIM
Kabe-mattan offers downloadable drawing materials through BIMObject that simplify design work. Via this link there is information for Kabe Original Colour.
END PROFILE
U 18 x 18 x 2 mm.
ASSEMBLY
The rubber strips and aluminium bars are riveted together with special rivets. The mat is held together by Ø 2.3 mm stainless steel wire.
RUBBER STRIP
A composition that is especially resistant to extreme temperature variations. TPE 65 Shore.
Dimensions 22 x 3.7 mm.
Colours red RAL 3011 and grey RAL 7040.
SURFACE TREATMENT
Natural aluminium is standard for Kabe Original Colour but it is also available in gold or black anodised aluminium.
ACCESSORIES
Can also be obtained with shopping trolley reinforcement.
ENVIRONMENT
Declared in Byggvarubedömningen (Green Building Material Assessment), Sunda Hus
INSTALLATION
Generally speaking, all types of mat should always be laid on a level, solid surface. Install on level, solid surface recessed in the floor using kerb angle frame Kabe 20R or, alternatively Kabe 22R, or on-floor in Kabe mat ramp, type 2.
Always state measurements A = width and B = length with specifications and when ordering.
CARE
The mat is designed with identical surfaces and should be reversed at least once a year, for maximum service life. For cleaning, do not use chemicals – only water.
For more information about installation and care, see PDF under Documentation.
INSPIRATION
Here, you can be inspired by some of our satisfied customers and experience Original Colour in different surroundings.
ACCESSORIES
Tailor-make your entrance mat with our various accessories. Kåbe-Mattan helps you to find the right solution that is suited to your needs and wishes.
SURFACE TREATMENT
Choose between several surface treatments to give your Kabe Original its own character.

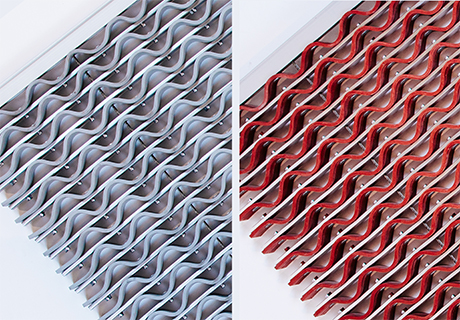

NATURAL ALUMINIUM

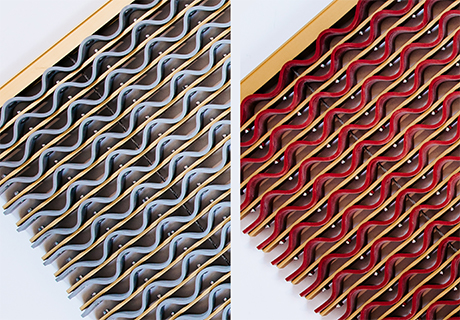

GOLD ANODISED

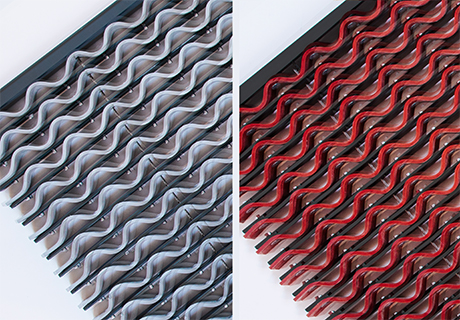

BLACK ANODISED

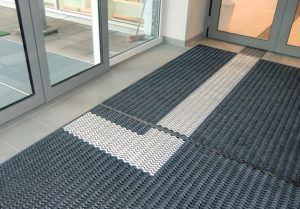

TACTILE AIDS
Create guide paths and creative patterns in Kabe Original entrance mats using tactile inserts, which are available in white and fluorescent green. The inserts fasten easily in the mat. Choose between several surface treatments to give your Kabe Original its own character.

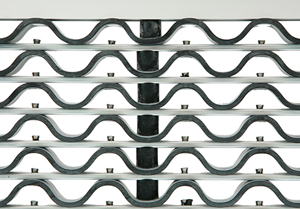

REINFORCEMENT
The reinforced version of the Kabe Original entrance mat is recommended if the mat is to be placed in environments where there is wheeled traffic or sloping floors combined with studs in the substrate. The reinforcement consists of black rubber bushes that are threaded on the steel wires.
OTHER MODELS
We know that no entrance is the same. For this reason, Kåbe-Mattan offers several different models of our famous entrance mat – so you can find the right solution for your needs. Discover our Original entrance mats here!
KÅBE ORIGINAL
KÅBE DE LUXE
KÅBE ECO
